Features and Benefits
- Compression-Only load cell
- Hermetically sealed cell
- Performance to 0.05%
- Compact size
- High 4 mV/V output
- Eccentric load compensated
- ±0.0008% /˚F – max temperature effect on output
- Low deflection

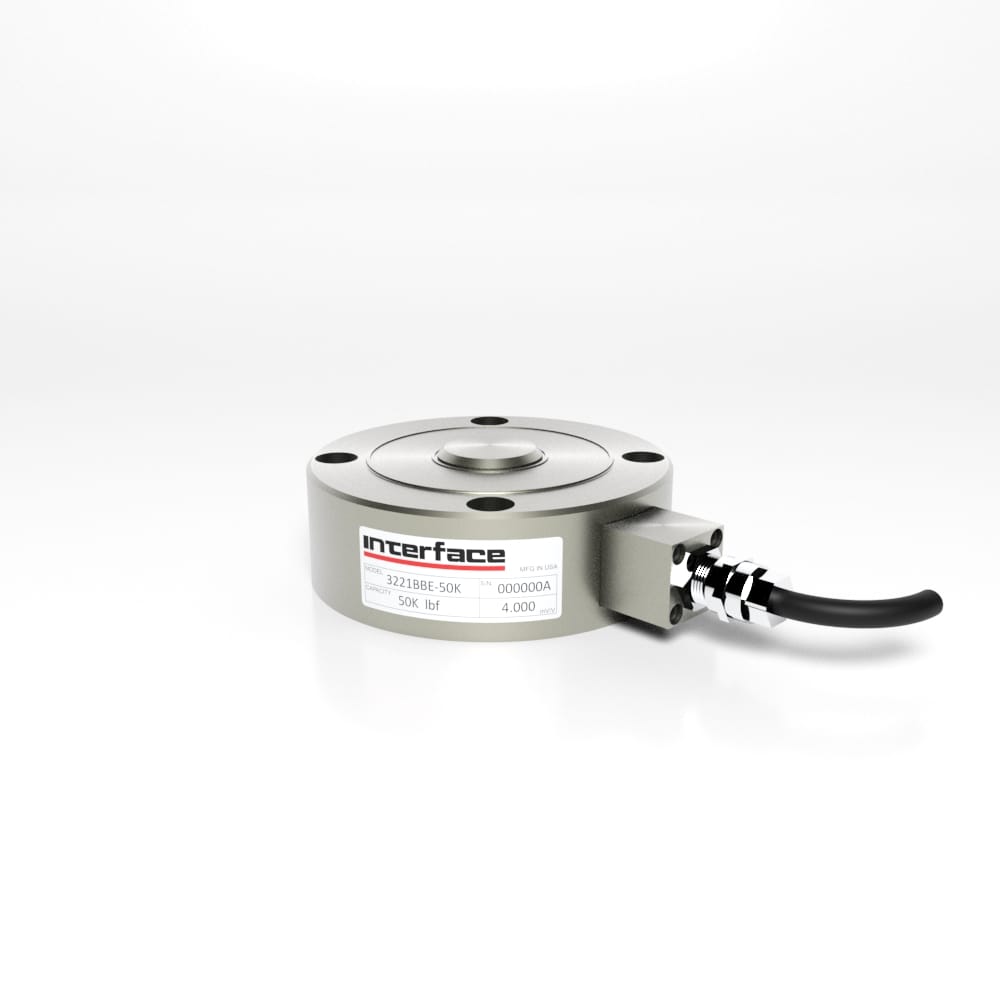

3201 Precision Stainless Steel Compression Only Load Cell
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
3201 Precision Stainless Steel Compression Only Load Cell
LowProfile® Hermetically Sealed
5K lbf to 100K lbf
25 kN to 450 kN
Options Available for 2nd Bridge and Overload Protection.
Models 3211, 3221, and 3231 are available.
Product Downloads
Options Available for 2nd Bridge and Overload Protection.
Models 3211, 3221, and 3231 are available.
Specifications
Specifications
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Shipping Information
| Weight | 6.80 lbs |
|---|---|
| Dimensions | 0.00 × 4.75 × 4.75 in |
| Configurations | 3211BBE-10K-B, 3211BBE-2.5K-B, 3211BBE-5K-B, 3221BBE-25K-B, 3221BBE-50K-B, 3231BBE-100K-B |
Configuration Weight Range: lbs: 3.3, 3.3, 6.8, 6.8, 13.5 kg: 1.5, 1.5, 3.08, 3.08, 6.12
Product Video
Features and Benefits
- Compression-Only load cell
- Hermetically sealed cell
- Performance to 0.05%
- Compact size
- High 4 mV/V output
- Eccentric load compensated
- ±0.0008% /˚F – max temperature effect on output
- Low deflection
Specifications
Specifications
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Dimensions
Dimensions
International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.
Shipping Information
| Weight | 6.80 lbs |
|---|---|
| Dimensions | 0.00 × 4.75 × 4.75 in |
| Configurations | 3211BBE-10K-B, 3211BBE-2.5K-B, 3211BBE-5K-B, 3221BBE-25K-B, 3221BBE-50K-B, 3231BBE-100K-B |
Configuration Weight Range: lbs: 3.3, 3.3, 6.8, 6.8, 13.5 kg: 1.5, 1.5, 3.08, 3.08, 6.12
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model 3221, 25K lbf Capacity, 20 ft Integral Cable, with Base | 3221BBE-25K-B | $ 2,075.00 |
| Model 3221, 50K lbf Capacity, 20 ft Integral Cable, with Base | 3221BBE-50K-B | $ 2,075.00 |
| Model 3211, 10K lbf Capacity, 20 ft Integral Cable, with Base | 3211BBE-10K-B | $ 1,460.00 |
| Model 3211, 2.5K lbf Capacity, 20 ft Integral Cable, with Base | 3211BBE-2.5K-B | $ 1,460.00 |
| Model 3211, 5K lbf Capacity, 20 ft Integral Cable, with Base | 3211BBE-5K-B | $ 1,460.00 |
| Model 3231, 100K lbf Capacity, 20 ft Integral Cable, with Base | 3231BBE-100K-B | $ 4,125.00 |
×
![]()
